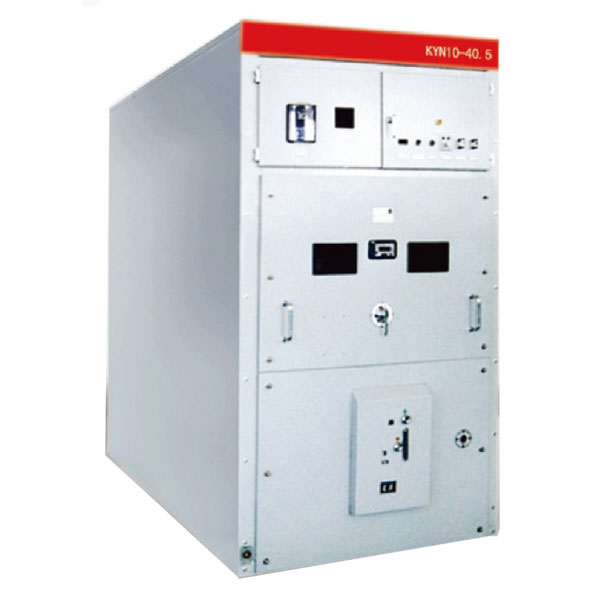

What is switchgear?

Switchgear is a crucial component in electrical power systems, encompassing a combination of electrical devices designed to control, protect, and isolate electrical circuits and equipment. It acts as a critical interface between power sources, transmission lines, and electrical loads, ensuring the safe and efficient operation of power systems by managing the flow of electricity and responding to faults or abnormal conditions.

1. Key Functions​

Circuit Protection: One of the primary functions of switchgear is to protect electrical circuits and equipment from damage caused by overcurrents, short circuits, and other electrical faults. It achieves this through devices like circuit breakers and fuses, which quickly interrupt the current flow when such issues occur.​

Control of Power Flow: Switchgear allows for the controlled distribution and redistribution of electrical power. It enables operators to start, stop, or redirect power to different parts of the system as needed, facilitating efficient power management.​

Isolation of Equipment: It provides a means to isolate specific sections or equipment of the electrical system from the rest. This is essential during maintenance, repair, or testing work, ensuring the safety of personnel by preventing the flow of electricity to the isolated area.​

Monitoring and Sensing: Modern switchgear often incorporates monitoring and sensing devices that keep track of various electrical parameters such as voltage, current, and frequency. This data helps in assessing the performance of the power system and detecting potential problems early.

2. Components​

Circuit Breakers: These are the core components responsible for interrupting the electrical current during faults. They can automatically trip when excessive current is detected, stopping the flow to prevent damage.​

Isolators: Used to physically separate parts of the electrical system. They do not interrupt the current under load but provide a visible break for isolation purposes.​

Fuses: These are protective devices that melt when an overcurrent passes through them, breaking the circuit. They are simple and cost-effective for low to medium current applications.​

Busbars: Conductors that serve as a common connection point for multiple circuits. They distribute power from the source to various branches of the system.​

Current Transformers (CTs) and Voltage Transformers (VTs): These transformers reduce high currents and voltages to measurable levels, allowing for monitoring and protection by instruments and relays.​

Control Panels: Contain switches, indicators, and relays that enable manual or automatic control of the switchgear operations.

3. Types of Switchgear​

Low-Voltage Switchgear: Designed for voltages up to 1000V. Common types include distribution boards, motor control centers, and panel boards. They are widely used in commercial buildings, residential complexes, and small industrial facilities.​

Medium-Voltage Switchgear: Used for voltages ranging from 1kV to 36kV. Examples include metal-clad switchgear and gas-insulated switchgear (GIS) for medium voltages. They find applications in industrial plants, distribution substations, and large commercial establishments.​

High-Voltage Switchgear: Operates at voltages above 36kV, typically up to 800kV or higher. It includes air-insulated switchgear (AIS) and gas-insulated switchgear (GIS) for high voltages. High-voltage switchgear is essential in power transmission systems, large power plants, and major substations.​

By Insulation Medium:​

Air-Insulated Switchgear (AIS): Uses air as the insulating medium. It is cost-effective but requires more space.​

Gas-Insulated Switchgear (GIS): Utilizes sulfur hexafluoride (SF₆) gas for insulation. It has a compact design, making it suitable for areas with limited space.​

Oil-Insulated Switchgear: Relies on oil for insulation and arc quenching. Though less common now, it is still used in some older installations.

4. Applications​

Power Generation Plants: Switchgear is used in power plants to control and protect generators, transformers, and other equipment, ensuring the safe and reliable supply of electricity to the grid.​

Substations: They play a vital role in substations, facilitating the transformation of voltage levels and the distribution of power. They help in switching between different transmission and distribution lines.​

Industrial Facilities: In industries such as manufacturing, mining, and petrochemicals, switchgear controls and protects motors, pumps, and other heavy electrical equipment, ensuring uninterrupted production.​

Commercial and Residential Buildings: Low-voltage switchgear is used in these settings for distributing electricity to various circuits, protecting against overloads, and enabling convenient control of electrical systems.​

Transmission and Distribution Networks: High-voltage switchgear is employed in transmission lines to manage the bulk transfer of electricity, while medium and low-voltage switchgear are used in distribution networks to deliver power to end-users.

Conclusion

Switchgear is an indispensable and sophisticated component of modern electrical infrastructure. Far beyond simple switching, it provides the critical functions of isolation, protection, control, and segmentation that ensure the safety of personnel, prevent catastrophic damage to expensive equipment, and maintain the reliability and stability of the power supply we depend on every day. From the main switchboard in a factory to the massive GIS installations in a city substation, switchgear silently and reliably guards the flow of electricity.
