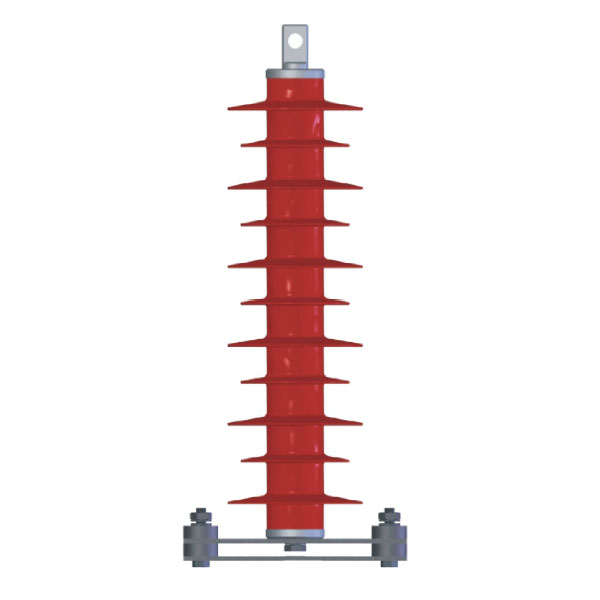

HY5WZ lightning arrester for substation

HY5WZ Series Power Station Type Arrester is a zinc oxide arrester designed for substations.It can withstand large current impact, effectively absorb overvoltage energy, adopts gapless design, compact structure, good sealing performance, moisture-proof and explosion-proof. It has undergone strict quality control and aging tests to ensure that the arrester has stable and reliable performance during long-term use.
Conditions of Use
Power frequency: 48HZ~62HZ
Ambient temperature: -40℃~+40℃
Maximum wind speed: no more than 35m/s
Altitude: no more than 2000m
Earthquake intensity: no more than 8 degrees
Ice thickness: no more than 10 mm
The long-term applied voltage does not exceed its maximum continuous operating voltage. Solar radiation: The impact of the maximum solar irradiation (1.1kW/mm2) has been considered in the product type test. If there are other heat sources near the arrester, the use of the arrester needs to be negotiated by both parties.
